Mixture of Natural Gas, Air, and Biogas Interchangeable to Town Gas

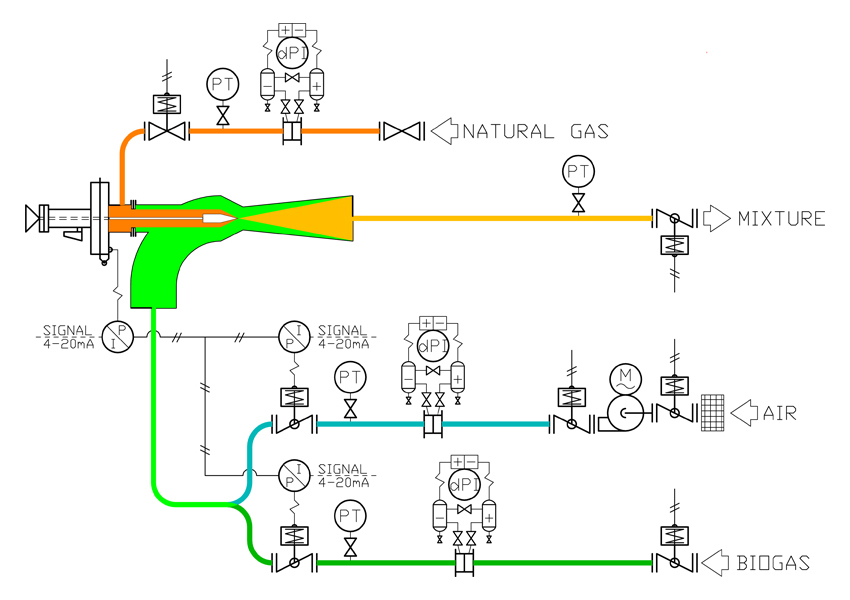

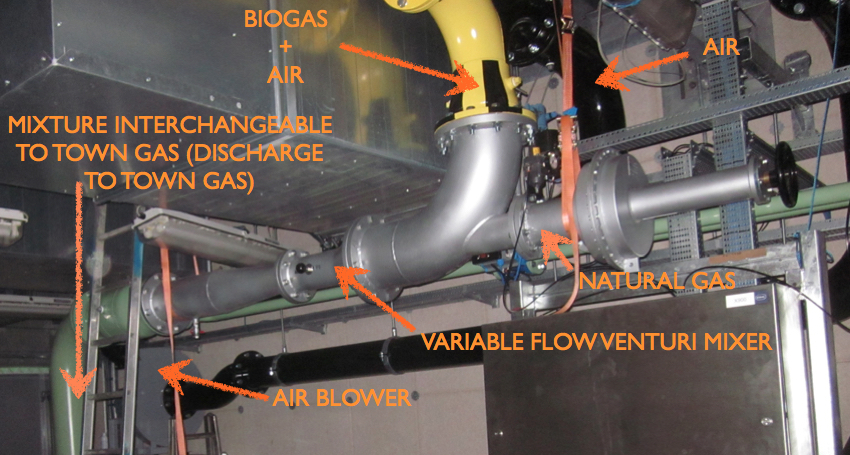

CAM supplied a variable capacity venturi mixing unit (2 variable venturi mixers) that uses Natural Gas as motive gas. A specific flow of Air and Biogas is aspirated by the mixers. The final result is a mixture with the same Wobbe Index of Town Gas. An air blower is necessary to create the correct blend of Air and Biogas, since Biogas is available at a pressure of 150-200 mbar.

• Mixture Capacity Range: 3000-500 Nm³/h
• Mixture Outlet Pressure: 300 mbar
• Mixture Average Composition: 35% Natural Gas + 33.5% Air + 31.5% Biogas
• Required Wobbe Index: 24.9 MJ/Nm³ ±3%
• Biogas HHV: 24.3 MJ/Nm³
• Biogas Density: 1.2 kg/Nm³
• Biogas Inlet Pressure: 150 mbar
• Air Inlet Pressure: 150 mbar
• Natural Gas HHV: 43.7 MJ/Nm³
• Natural Gas inlet Pressure: 12 barg
